The Story

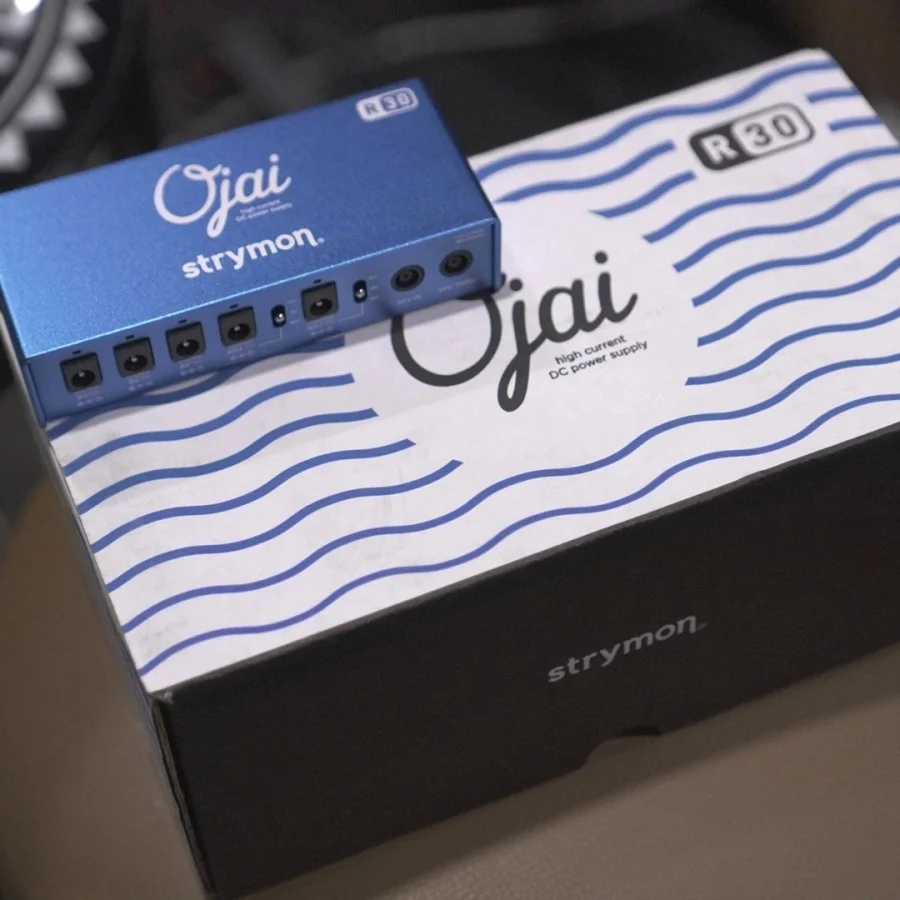

Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.
Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.
Specifications :
- 5 individual custom transformers (one per channel) deliver clean, consistent power
- Worldwide power compatibility ensures no-hassle international touring
- Energy efficient, compact design
- Construction
- Lightweight and rugged anodized midnight blue aluminum chassis
- Ultra low profile design fits under nearly any pedalboard
- Designed and built in the USA
- 5 high-current, fully isolated 9V outputs with center-negative polarity
- 3 dedicated 9V outputs (500mA)
- 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
- 500mA per output powers nearly any pedal
- 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
- 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
- 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
- Dimensions: 5.1″ x 2.3″ x 1.15” (130mm x 58mm x 29mm)
- Weight: 6 oz. (171g)
Description
Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.
Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.
Specifications :
- 5 individual custom transformers (one per channel) deliver clean, consistent power
- Worldwide power compatibility ensures no-hassle international touring
- Energy efficient, compact design
- Construction
- Lightweight and rugged anodized midnight blue aluminum chassis
- Ultra low profile design fits under nearly any pedalboard
- Designed and built in the USA
- 5 high-current, fully isolated 9V outputs with center-negative polarity
- 3 dedicated 9V outputs (500mA)
- 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
- 500mA per output powers nearly any pedal
- 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
- 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
- 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
- Dimensions: 5.1″ x 2.3″ x 1.15” (130mm x 58mm x 29mm)
- Weight: 6 oz. (171g)
